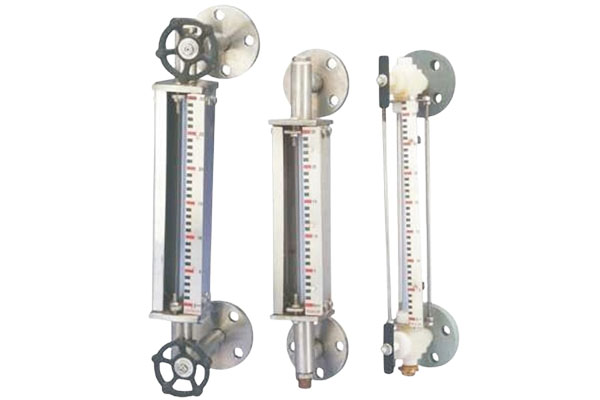

Gauges are fitted using gland packing with two end blocks. Tank liquid seeks its level in the gauge because the gauge is mounted parallel to the tank, creating a closed loop. To prevent accidental blows, guards are provided around the gauges in the form of tied rods or a C-channel.
End Blocks Have Built Insolating Valve ,Drain Valve And Vent Plug.
Features:
- 360 Visibility With Tie Rod Design
- Offset Isolating Valves Permit Glass Removal /Replacement
- Available In Various Material
Application:
- Chemical/Petrochemical
- Pharmaceutical
- Fertilizer
- Automobile
- Power Generation
- Water/Waste Water/ETPs Etc
LGR
Level Gauge Tubular

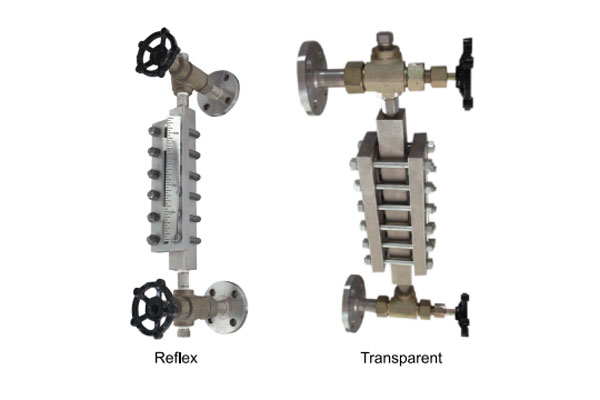

The laws of light refraction and reflection serve as the foundation for the operation of reflex level gauges.
Two transparent sight glasses, one on each side of the liquid chamber, are used in transparent level gauges.
Light is allowed to flow through, making it possible to observe the liquid’s level, colour, and clarity.
Because the two media have different transparency qualities, the liquid level is shown.
- Simple & rugged design
- Easy for installation & maintenance
- Stainless steel version (optional)
- High pressure version (optional)
- Chemical Industries
- Process Industries
- Power Industries
- For clear liquids in pressurized chamber or boiler drum
Specification
| Specification | |
|---|---|
| Mounting | Side |
| Body material | Carbon Steel |
| C. C. distance (±3 mm) | 300 mm to 4000 mm |
| Process connection | 1” 150 # Flanged |
| Scale | Aluminum |
| Drain & vent | 1/2” NPT (M) Plugs |
| Auto shut off ball valve | Screwed Bonnet type |
| Gaskets | Compressed Asbestos Fibre (CAF) |
| Sight glass | Toughened Glass |
| Maximum Operating Temperature | Up to 120°C |
| Maximum Operating Pressure | 20 kg/cm² |
